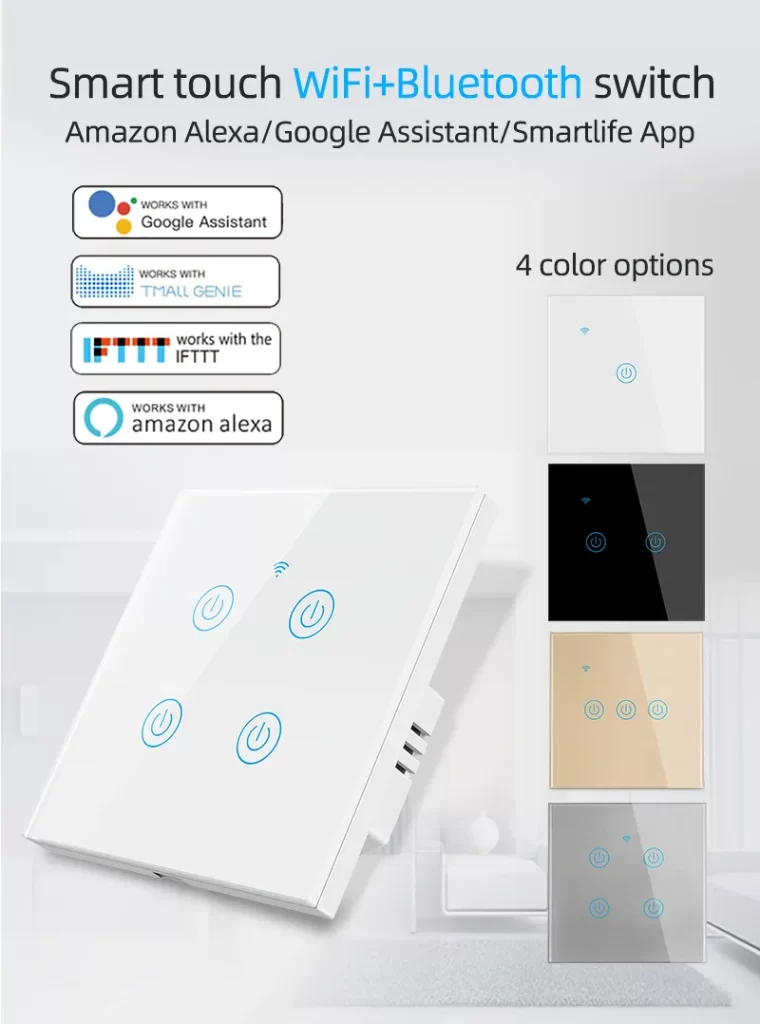

SLS EU WiFi Bluetooth Smart Touch Dimmer Switch with Neutral Wire

 Smart Touch Dimmer Switch with Neutral Wire

Description

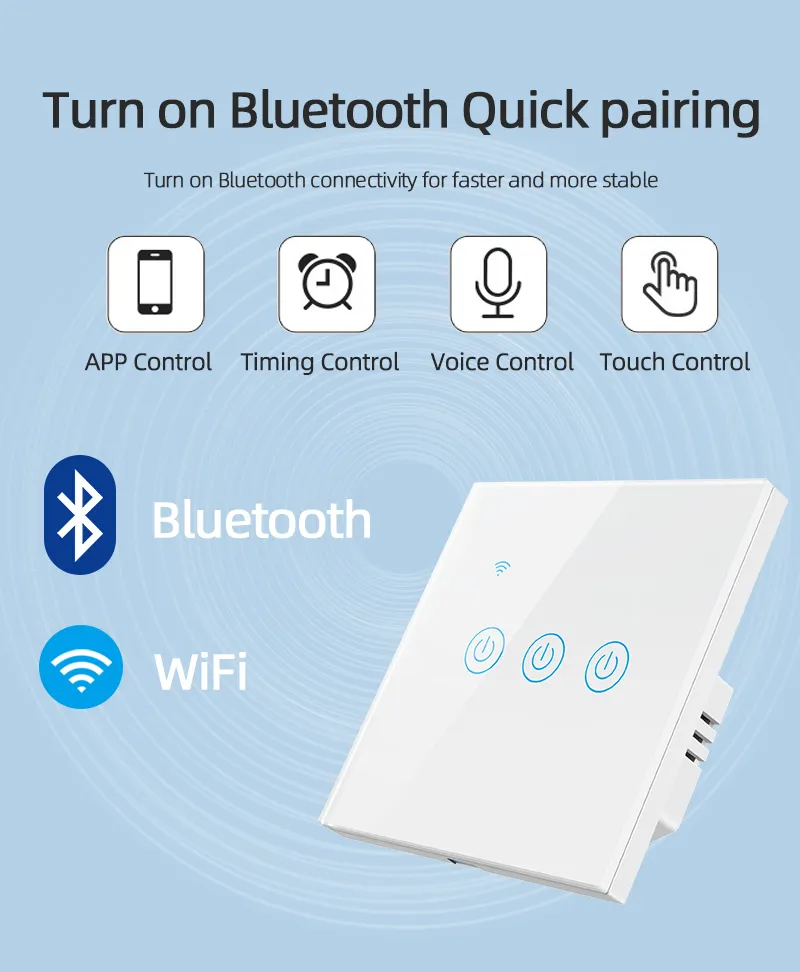

The smart touch dimmer switch by smart home device is devoted to household smart products. This newly designed glass panel wireless smart touch dimmer switch features WiFi+Bluetooth technology to replace traditional switches.

It offers a variety of ways to control, including a new smart feature: multi-control association with other smart touch light switches through the Smart Life/Tuya App. Additionally, users can toggle the backlight on/off and check the relay status. Its scratch-resistant glass panel suits different decoration styles, providing the best value.

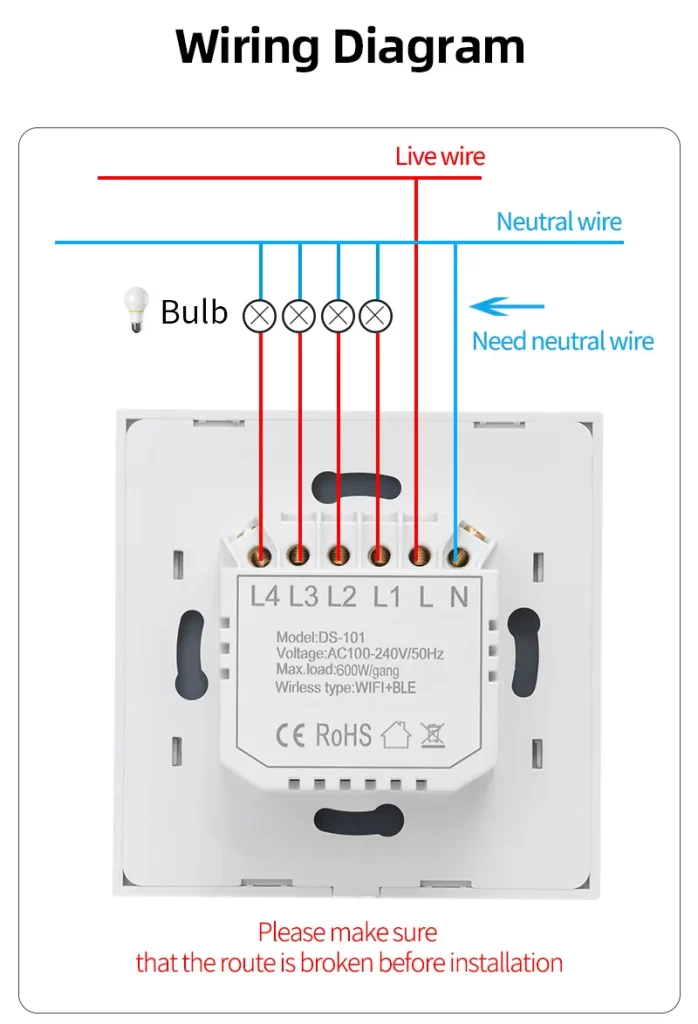

Wiring Diagram

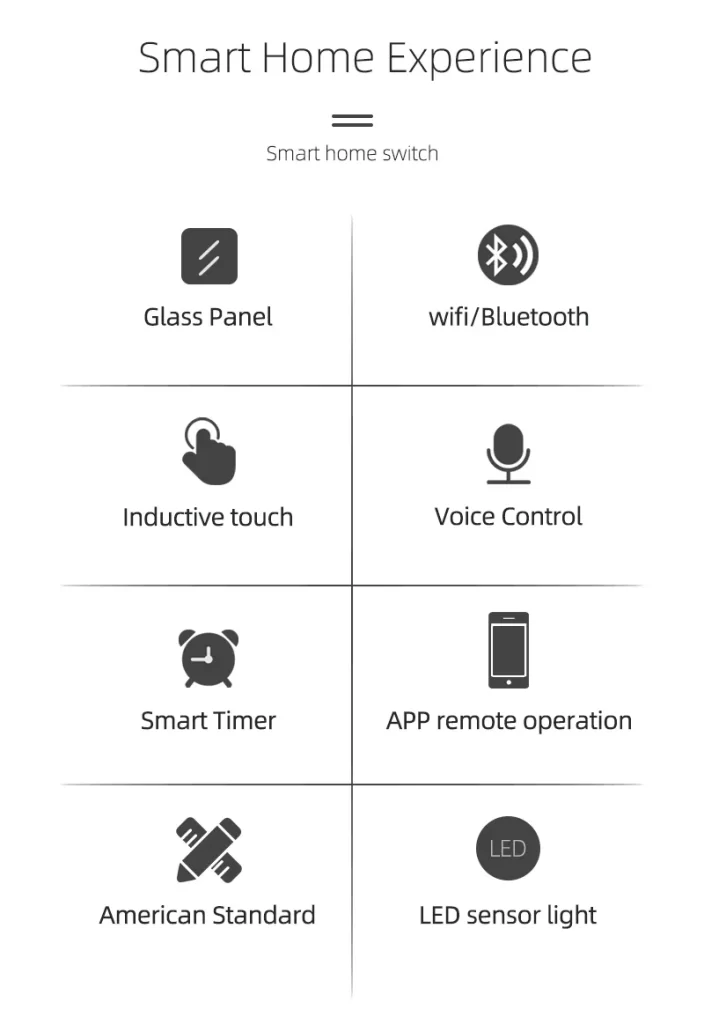

Main Features

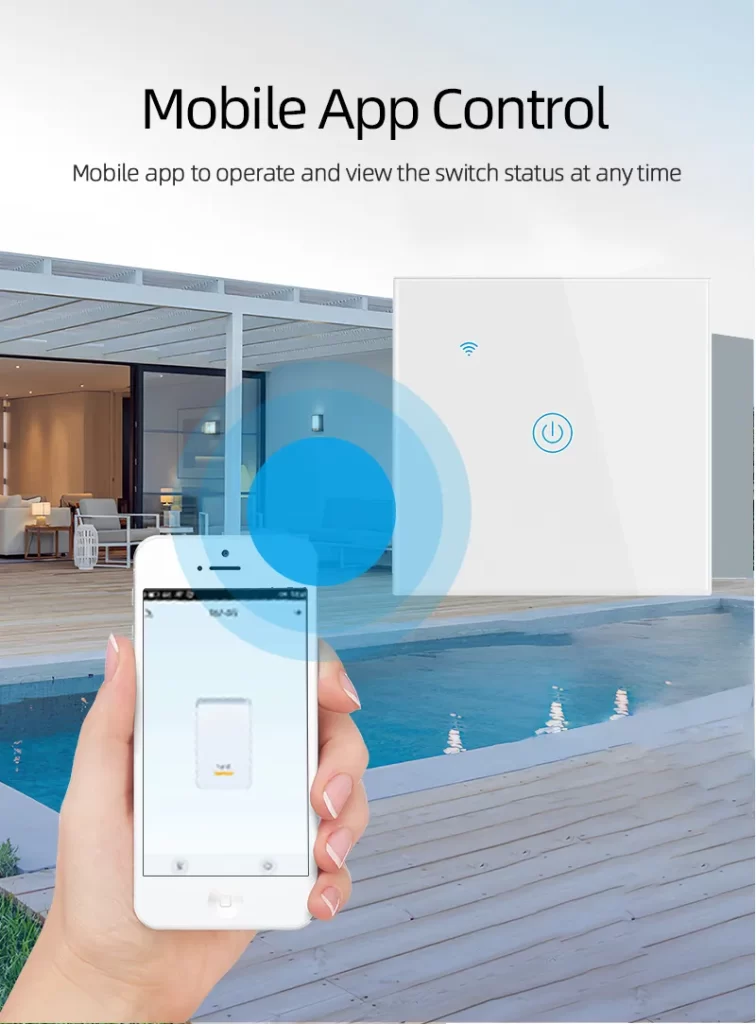

1. App Remote Control: As long as your smartphone or tablet has a 4G or WIFI network, you can control your lights with the App “Tuya Smart or Smart Life.”

2. Voice control: Perfectly Compatible with Alexa and Google Home. Turn on/off lights with voice commands when your hands are full.

3. Timer Setting: Setting a schedule or timer on/off your lights at night and morning so that you will never go back to a dark house when you go back home at dusk. Moreover, you could quietly be woken up by the scheduled light every morning.

4. Share Function: Sharing devices with your family members to eliminate extra steps for connection.

5. Smart Scene: Creating your scene to trigger ON/OFF home appliances by departure mode, home mode, temperature, humidity, or other environmental conditions.

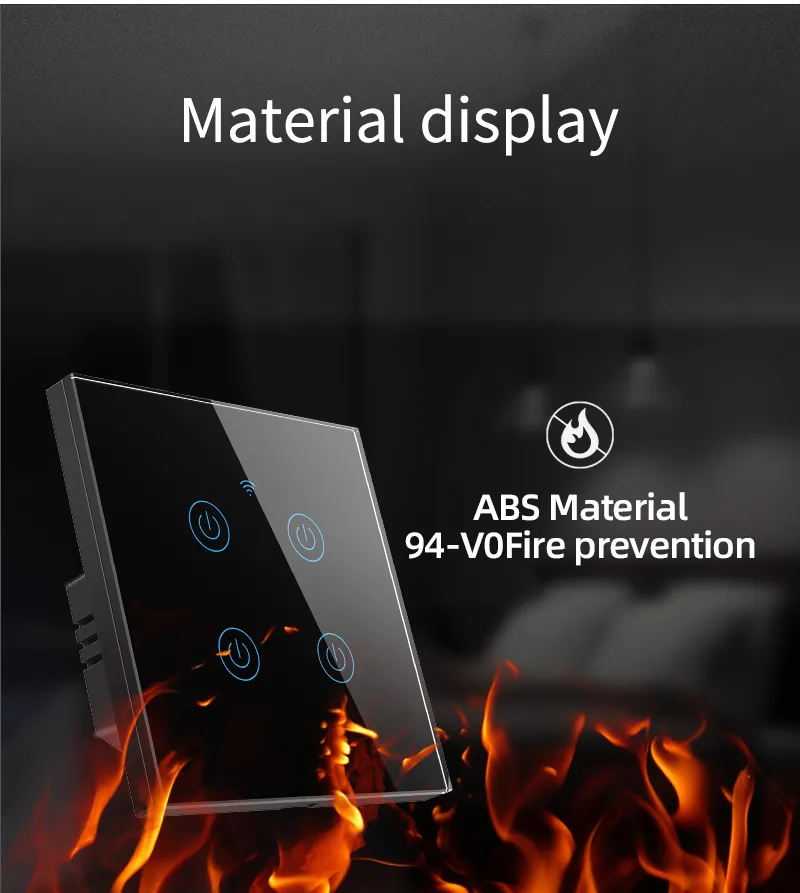

6. Safety and Certification: The wall touch dimmer switch adopts premium materials, such as a fire-resistant shell, phosphor bronze connects, and advanced pc+tempered glass, which can provide fire prevention overload protection to protect your family. CE, FCC, and RoHS certificates for all our products. Without using any harmful chemical substances, please feel free to use them.

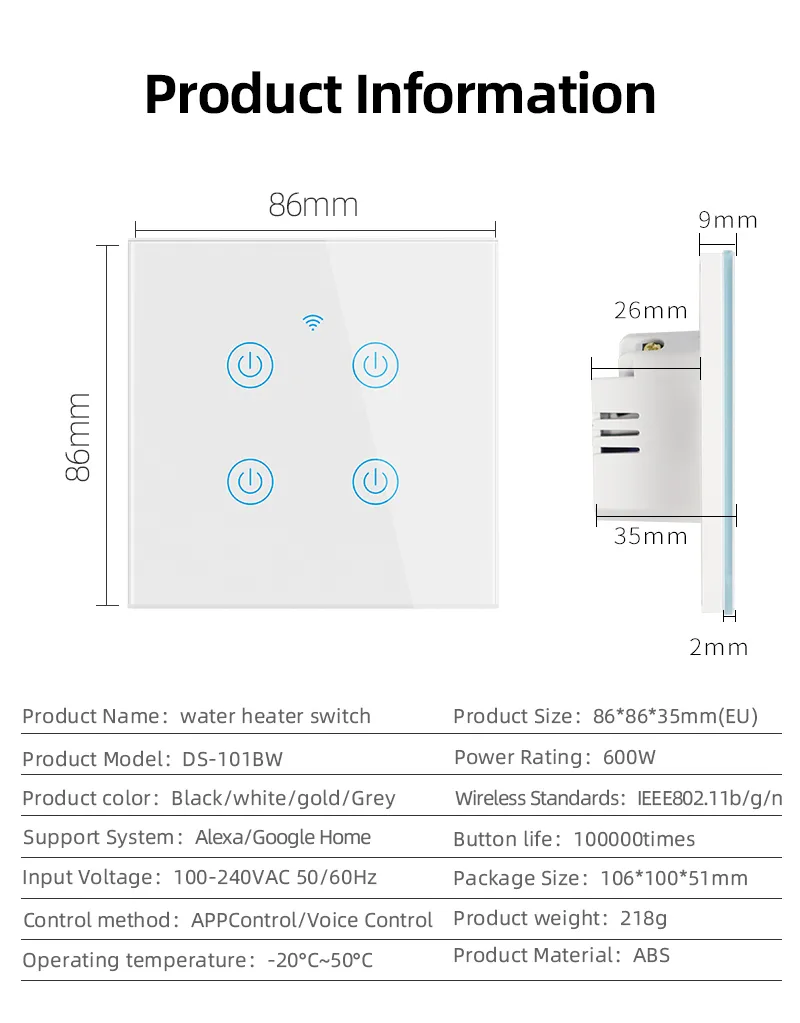

Specifications

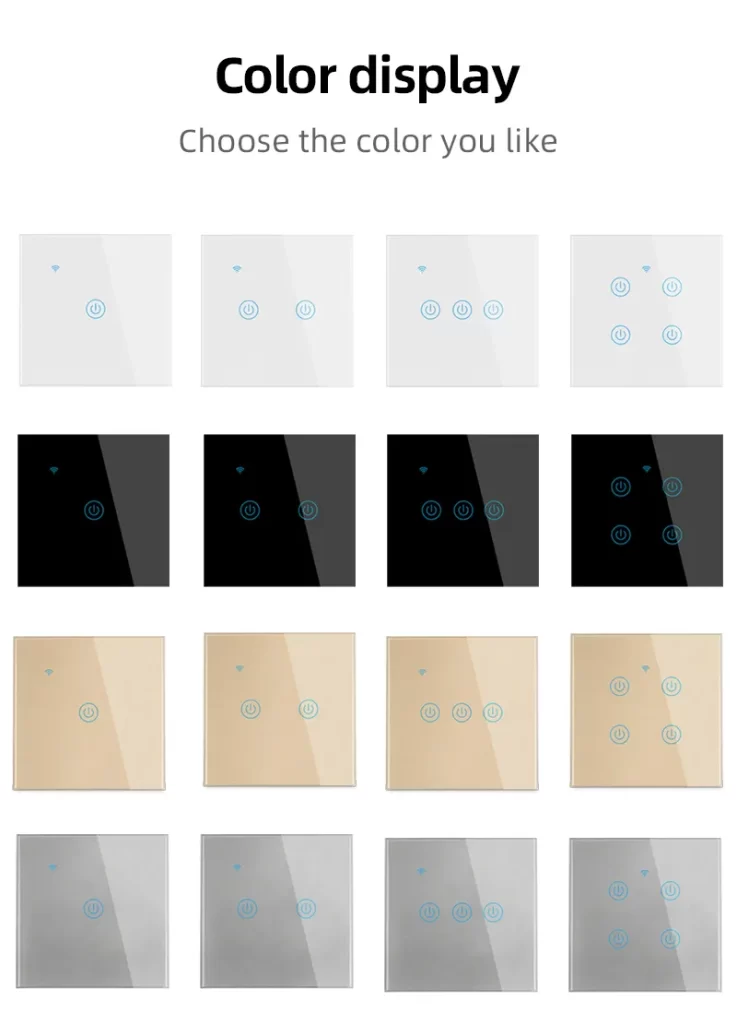

Color: White/Black/Gold/Gray
Material: PC+ Toughened Glass Panel
Voltage: 100-250V 50/60Hz
Current: 10A
Rated Load: 5-600W/Gang
Power Consumption: ≤0.5W
Working Temperature: 0℃~40℃
WIFI Standard: IEEE 802.11bgn 2.4Ghz
Support System: Above iOS 8.0 or Android 4.3
Hub Requirement: No
Network Security: WPA/WPA2″
Control Mode: APP/Manual
Certification: CE, RoHS
APP: Tuya Smart/Smart Life

FAQ

Q1: How to reset the switch?
A1: Long press any button for 10-12seconds.

Q2: How to match the RF remote controller? (For having an RF function switch)
A2：
1. Connect the switch with power.

2. Connect the switch with WIFI

3. Hold the touch dimmer switch power button for 4 seconds. The buzzer sounds “drip,” then press the “remote control” button, and the “remote control” will sound “drip.” wait for the switch to sound “drip,” connecting successfully, and take turns pairing up each group.
(Attention: The switch needs to be connected with the remote controller, and then with the APP connected to the network, The remote controller resets the switch connected to the network during code matching)）

Q3: How to remove the remote controller?
A3: Press the switch touch button for 6 seconds, the buzzer rings twice, “drip drip,” and the remote completes the removal.
